Superway High voltage Electric Compressor for Car

Superway High voltage Electric Compressor for Car

IP67 waterproof, dustproof,shockproof
After rigorous test assessnent andreliability assurance
Light weight and small customized design, meeting market demand
The product features are outstanding and deeply recognized by customers
High technology maturity, good quality reputation and sustainable development



  • Passenger car

  • Passenger car

  • Passenger car

  • Passenger car

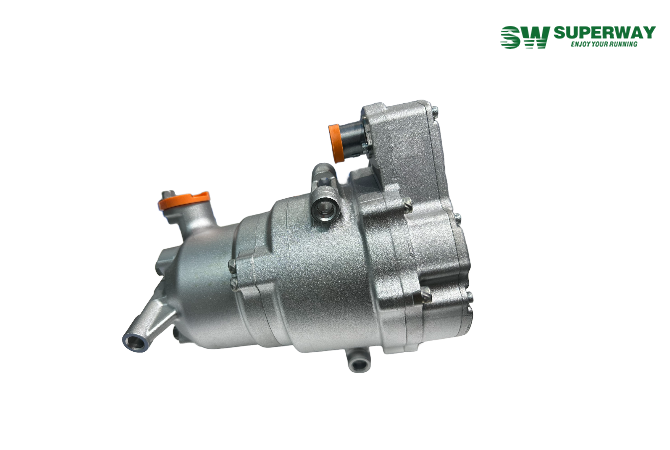

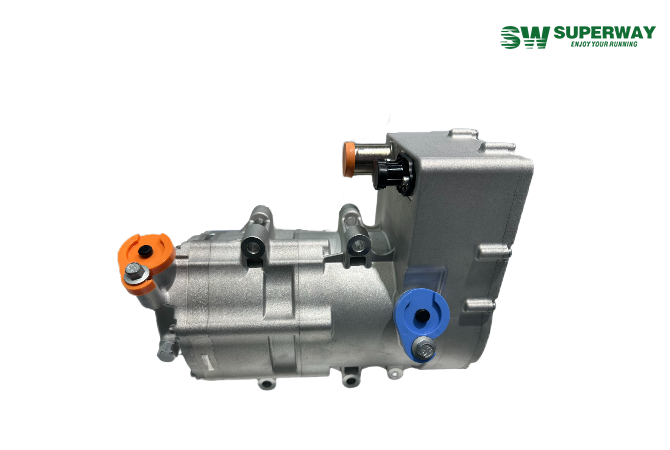

High Voltage Electric AC Compressor

High voltage electric compressors  mainly used in the air conditioning system of new energy passenger cars, especially for models with strict requirements for low-temperature operation, such as pure electric vehicles (EV), plug-in hybrid electric vehicles (PHEV), etc. Whether in the severe cold regions of North America or the winter environment of Europe, it can provide users with efficient and stable thermal management solutions.

Electric AC Compressor Features

✅Ultra-low temperature operation: supports stable operation in extremely cold environments of -30℃, effectively improves the efficiency of the heat pump system, and reduces endurance loss.

✅ Low pulsation, low noise: optimizes fluid dynamics design, reduces airflow pulsation and vibration, ensures silent operation, and provides a more comfortable experience for drivers and passengers.

✅ Miniaturization and lightweight design: adopts a highly integrated design, occupies a small space, is light in weight, saves space for the whole vehicle and reduces overall energy consumption.

✅ High efficiency and energy saving: advanced motor and frequency conversion control technology improves the energy efficiency ratio (COP), reduces vehicle energy consumption, and extends the range.


Technical Specification


Model  SWETS34 SWETS34L SWETH34 SWETH45
Displacement (cc/rev) 34 34 34 45
Voltage range (VDC) 200~490
400~750		 140~460 200~490 200~490
400~850
Weight with oil (kg) 5.85 6.5 6.3 8.3
Length（mm） 210 255 221 261
Speed range（Rpm） 800~8000

800~8000



800~9000



600~10000


Cooling Capacity (kw) 0.8kw ~8kw

0.8kw ~8kw



0.8kw ~9kw



1kw ~13kw


Communication Protocol  CAN /LIN

CAN /LIN



CAN /LIN



CAN /LIN


Refrigerant R134a/R1234yf R134a/R1234yf R134a/R1234yf R134a/R1234yf


Technical Features

 ●VDAStandardization
    ●Miniaturization design
●Lightweight Design
   ●Low pulsation
  ● Internationalized development standards		         ● Ultra-low temperature heat pump
        ● Wide operating range
        ● Low NVH / Low pulsation		           ● Large displacement
          ● High voltage
          ●Ultra-low temperature
          ●heat pump
          ● Wide operating range
          ● Low NVH /Low pulsation
