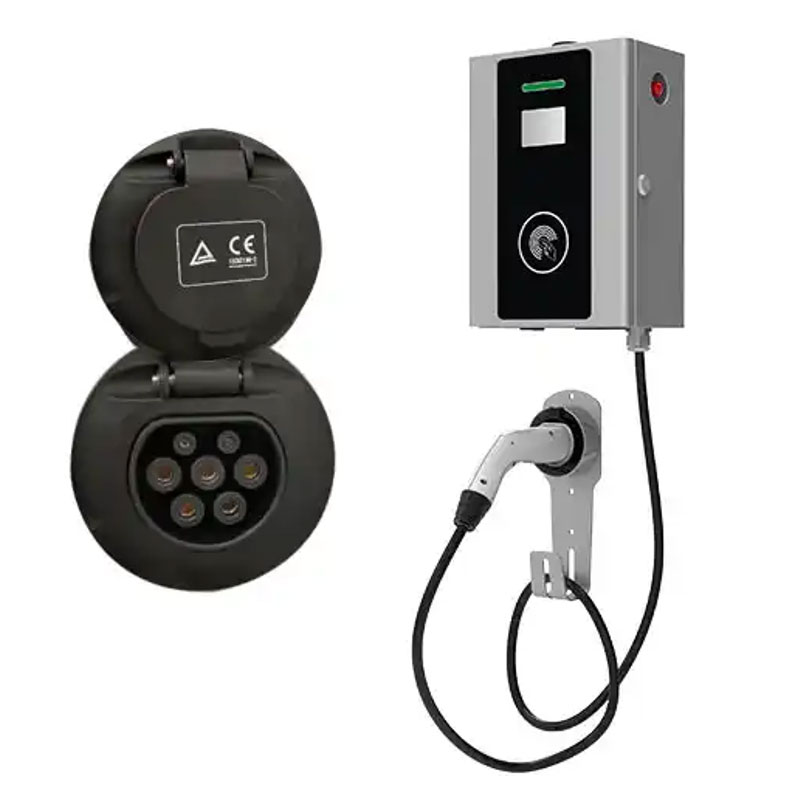

Wall Mounted EV Charger

Wall-mounted EV chargers provide convenient, efficient, and intelligent communication charging solutions to meet the charging needs of electric vehicles in home and commercial applications. Quick charging can be achieved in places with small parking spaces.

Wall-mounted EV charger design concept

1. Space saving: The design of the wall-mounted charger focuses on saving space, fixing the device on the wall, and reducing the floor space occupied.

2. Easy installation: It allows home users and commercial places to install it by themselves, simplifying the installation method easily.

3. Emphasis on appearance: The wall-mounted electric vehicle charger is very easy to integrate into the home or commercial environment, and at the same time provides an easy-to-operate user interface.

4. Fast charging: Although typically used for home charging, wall-mounted chargers can also provide faster charging speeds to ensure that electric vehicles are replenished quickly.

5. Communication and intelligent functions: The charger can communicate with electric vehicles, monitor charging status, measure electric energy usage, and has remote control and smart dispatch functions.

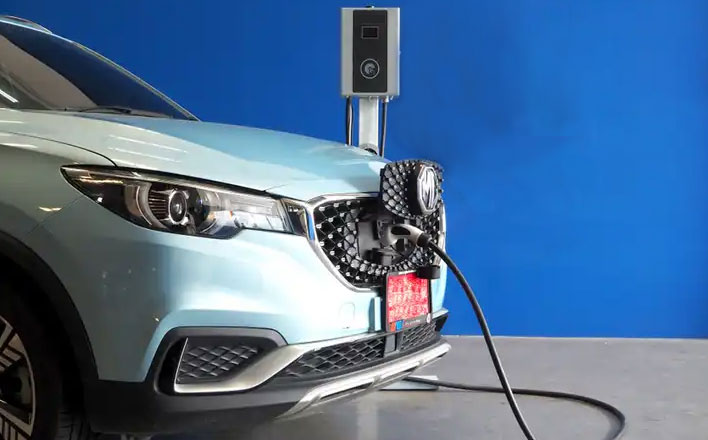

Wall-mounted charger to charge electric vehicles

Wall-mounted charger application scenarios

1. Home charging: Provide convenient home charging solutions for private electric vehicles, suitable for pure electric vehicles (BEV) and plug-in hybrid electric vehicles (PHEV).

2. Commercial charging: Used in commercial places, such as hotels, restaurants, and office buildings, to provide charging convenience for employees, customers, and visitors.

3. Public parking lot: Installed in public parking lots or parking facilities, it can provide charging services for electric vehicles and is suitable for various models.

SWAC32 Wall Mount EV Charger Standard

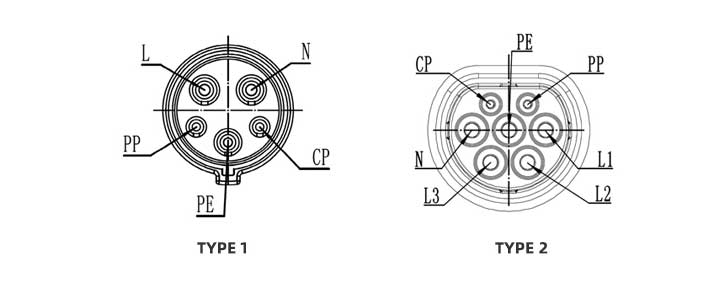

1. SAE J1772 (Type 1) / IEC 62196-2 (Type 2), as an international standard for charging equipment, ensures the interoperability and safety of chargers.

2. Safety standards: SWAC32 wall-mounted charger complies with international electrical safety standards and can ensure user safety. These include overcurrent protection, overheating protection, short circuit protection, and other functions.

3. Plug standard: The charging plug complies with international or regional-specific standards, in order to adapt to the electric vehicle charging interface standards of different countries and regions.

CATEGORY		SWACSERIES
Model Name		SWAC32 (EU)	SWAC32 (US)
AC Input	Input Rating	230 Vac / Single Phase 400Vac / Three Phase	208-240 Vac / 1-phase (AC Level 2) 400Vac / Three Phase
	AC Input Connection	L/N/PE 3P/N/PE
	Max. Input Current (A)	32
	Frequency (Hz)	45~65
	Residual Current Device (Type B Optional)	Type A: lΔn 30 mA Type B: lΔn 30 mA + dc 6 mA	CCID 20
User Interface & Control	Display	3.5 inch LCD
	User Authentication	RFID ISO/IEC 14443A/B
	Display Information	Current, Energy
Communication	External	Ethernet/4G/3G
	Internal	OCPP 1.6 JSON
Environmental	Operating Temperature (°C)	-30 ~ 50
	Humidity (%)	5 ~ 95 RH non-condensing
	Altitude (m)	≤2500m
	IP Level	IP54	NEMA TYPE 3R
	Cooling method	Natural Cooling
Mechanical	Dimension(WxDxH mm)	160280398.5（Wall mounted type） 181.52801515（Floor mounted type）
	Weight(kg)	≤14kg（Wall mounted type） ≤20kg（Floor mounted type）
	Cable Length(m)	5
Protection	Input Protection	OCP: <35.2A / OVP: >275V / UVP: <160V
	Output Protection	OCP: <35.2A / OVP: >275V / UVP: <160V
	Ground Fault Protection	Lost input ground connection
Regulation	Certificate	IEC 61851-1:2017 IEC 61851-21-2	UL2594 , UL2231-1/-2
	Safety	CE	UL/cUL
	Charging Interface	IEC 62196-2:2016, Type 2 Plug	SAEJ1772 Type 1 Plug
