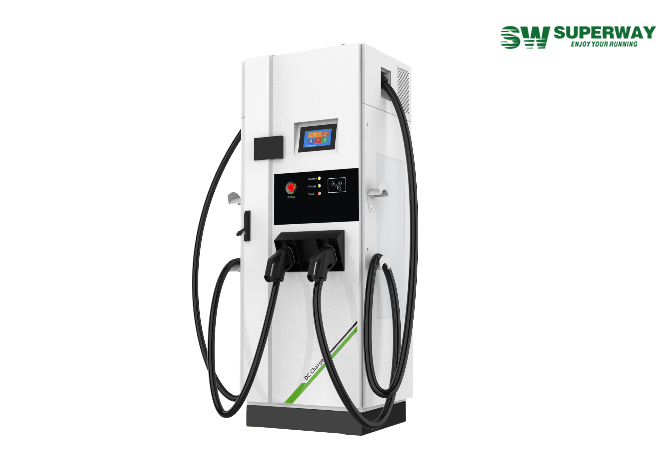

Superway DC Charger 60KW~120KW/150KW/160KW/180KW

Driven by the global new energy wave, the electric vehicle market is developing rapidly, and charging speed has become a key factor affecting user experience. Superway has launched high-power DC fast charging piles with industry-leading technology to provide faster, more efficient and more stable charging solutions for mid-to-high-end electric vehicles and commercial vehicles.

DC Charger Features

⚡ Fast charging, saving precious time

Superway high-power DC fast charging provides 120KW~180KW power output and supports dual-gun charging at the same time, allowing two cars to enjoy efficient charging at the same time. Compared with traditional charging piles, it greatly shortens the waiting time for charging, so that your electric car can be fully charged at any time.

⚡ Efficient conversion, energy saving and more environmentally friendly

Adopting advanced power electronic conversion technology, the power conversion efficiency of Superway charging piles is as high as >95%, reducing energy loss, not only improving charging efficiency, but also reducing operating costs, and promoting green travel.

⚡ Comprehensive adaptation, worry-free travel

Whether it is a luxury pure electric vehicle or a commercial logistics vehicle, Superway high-power DC fast charging can be perfectly matched to meet the charging needs of various electric vehicles, ensuring that users can enjoy the ultra-fast energy replenishment experience anytime, anywhere.

⚡ Super stable, safe and reliable

We adhere to high-standard manufacturing to ensure that the equipment has multiple safety guarantees such as intelligent temperature control, overvoltage protection, and short-circuit protection, and operates stably around the clock, providing a long-lasting and reliable charging experience even in high-frequency usage scenarios.

Technical Specification

Charging type	DC Charger
Output Power	60kW	90kW	120kW	150KW	160kW	180KW
Input voltage range	400VAC±15% (50Hz-60Hz)
Connector types	3P + N + PE
Max Input Current	< 110A	< 165A	< 215A	< 270A	< 287A	< 320A
Efficiency(max)	>95% (peak)
Standby Power Consumption	＜50W*N (Plug)
Power factor (full load)	> 0.99
THDi	< 5%
DC output voltage	150Vdc-1000Vdc
DC plug Rated Current	CCS1：0-300A (support dual-plug)
	CCS2：0-300A (support dual-plug)
	GB/T：0-250A (support dual-plug)
	CHAdeMO：0-200A
custom communication	4G , Ethernet
User authentication	App, RFID, MAC, Screen button
User interface	7" LCD touchscreen
Communication protocols	OCPP 1.6J(Extendable to ocpp 2.0)
RFID Reader	ISO 14443
Multilanguage system	English, French, Spanish, Russian and Chinese
Software update	Remote upgrade
Charging connector	1or2
Protection	Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection
Operational altitude	Up to 2500 m
Operating temperature range	-30°C to + 55°C (power de - rating applies)
Humidity	5 -95% Rh non- condensing
IP and IK rating	IP-55 and IK-10(cabinet)/IK-8(touchscreen)
Dimensions (W x D x H)	700mm500mm1650mm
Weight	≤450kg
Cable length	5 meters(8m/10m optional)
Product standard	IEC 61851-1/23/24,IEC 62196-1/3,DIN 70121,ISO 15118
Certification	CE
