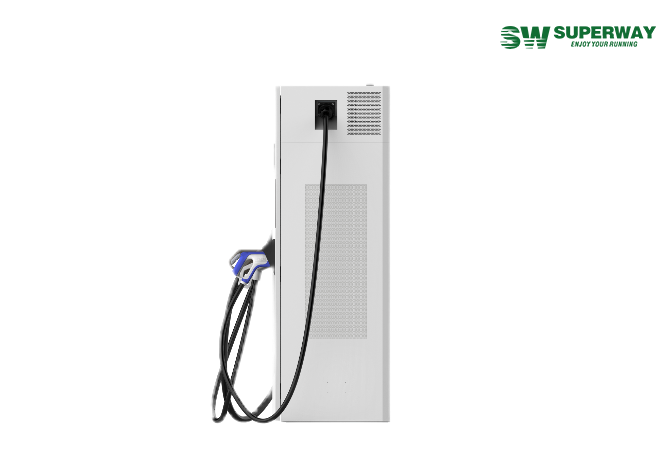

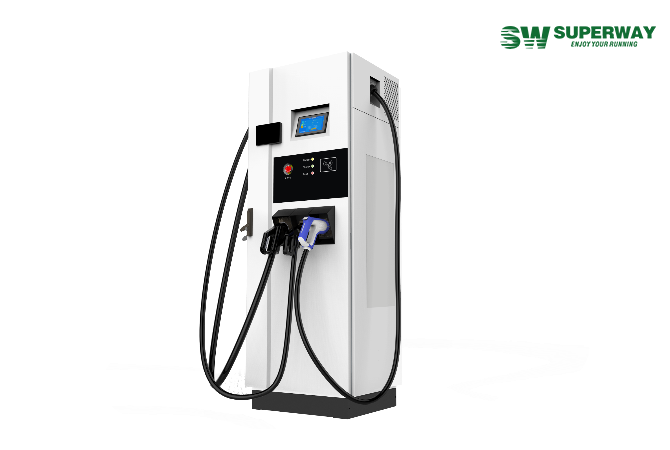

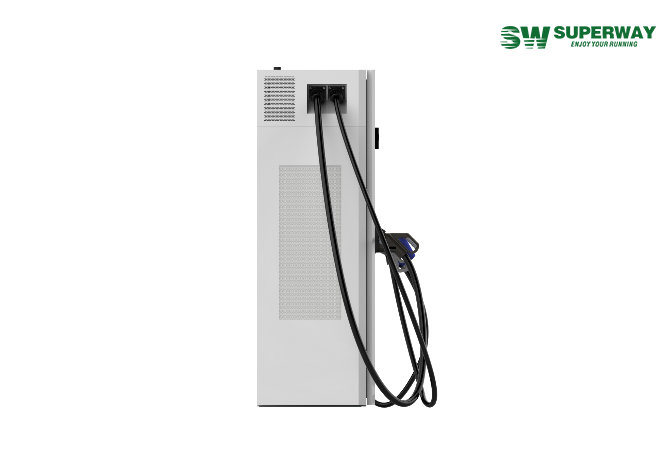

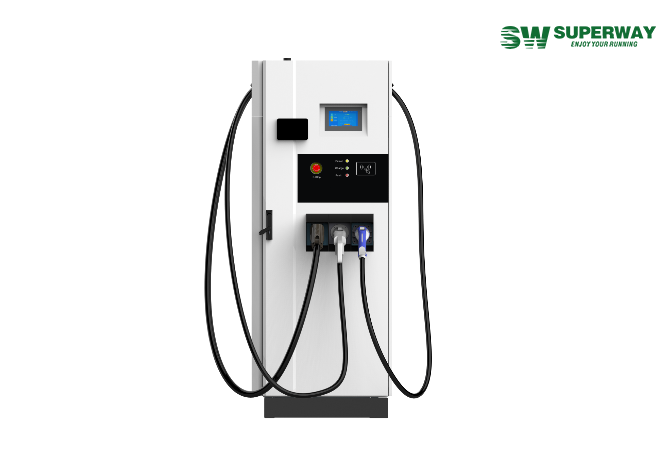

Superway DC Charger Multi-Standards 60KW~150KW/180kW

In the era of new energy travel, the coverage rate and charging efficiency of charging stations determine the user experience. Superway charging piles, with up to 95% power conversion efficiency, three-car charging capability, and stable and durable design, have become an ideal choice for multiple scenarios such as public charging stations, retail malls, and office spaces.

DC Charger Multi-Standards Features

⚡ Three cars charging at the same time, efficient and no waiting

Superway charging piles support charging up to 3 cars at the same time, including 2 DC fast charging interfaces + 1 AC slow charging interface, which can flexibly adapt to the needs of different models. Whether it is fast charging or slow charging, intelligent allocation can be achieved, making the charging station utilization rate higher and reducing queuing time!

⚡ High efficiency energy consumption, power conversion rate >95%

Adopting advanced power management technology, the power conversion efficiency of Superway charging piles is as high as 95%, which effectively reduces energy consumption and operating costs, making every kilowatt-hour of electricity fully utilized, and providing a more energy-saving and environmentally friendly solution for new energy charging networks.

⚡ Suitable for a variety of commercial scenarios

Superway charging piles are designed for public charging stations, shopping centers, office buildings, hotels, parking lots and other places. They can meet the charging needs of different users, enhance the added value of the site, and help commercial operators build green energy supply stations to attract more new energy car owners to consume.

⚡ Stable quality, all-weather protection

The charging pile adopts moisture-proof, mildew-proof and salt spray-proof coatings. Even in bad weather or coastal high humidity environments, it can operate stably for a long time, providing users with safe and reliable charging services.

⚡ Smart charging, green future

The future of new energy travel requires more efficient and smarter charging infrastructure. Superway charging piles provide better charging solutions for urban travel and commercial operations with the characteristics of high efficiency, intelligence and multi-vehicle charging, and promote the development of green energy!

Technical Specification

Charging type	DC Charger + AC charger
Max DC output power rating	DC:60kW ,120kW , 180kW; AC:7kW ,22kW ,43kW (Optional)
Input voltage range	400VAC±15% (50Hz-60Hz)
Connector types	3P + N + PE
Max Input Current	< 110A	< 165A	< 215A	< 270A	< 320A
Efficiency(max)	>95% (peak)
Standby Power Consumption	＜50W*N (Plug)
Power factor (full load)	> 0.99
THDi	< 5%
DC output voltage	150Vdc-1000Vdc
DC plug Rated Current	CCS1：0-300A (support dual-plug)
	CCS2：0-300A (support dual-plug)
	GB/T：0-250A (support dual-plug)
	CHAdeMO：0-200A
custom communication	4G , Ethernet
User authentication	App, RFID, MAC, Screen button
User interface	7" LCD touchscreen
Communication protocols	OCPP 1.6J(Extendable to ocpp 2.0)
RFID Reader	ISO 14443
Multilanguage system	English, French, Spanish, Russian and Chinese
Software update	Remote upgrade
Charging connector	1or2
Energy metering	MID
Protection	Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection
Operational altitude	Up to 2500 m
Operating temperature range	-30°C to + 55°C (power de - rating applies)
Humidity	5 -95% Rh non- condensing
IP and IK rating	IP-55 and IK-10(cabinet)/IK-8(touchscreen)
Dimensions (W x D x H)	750mm630mm1912mm
Weight	≤438kg
Cable length	5 meters(8m/10m optional)
Product standard	IEC 61851-1/23/24,IEC 62196-1/3,DIN 70121,ISO 15118
Certification	TUV CE、TR25
