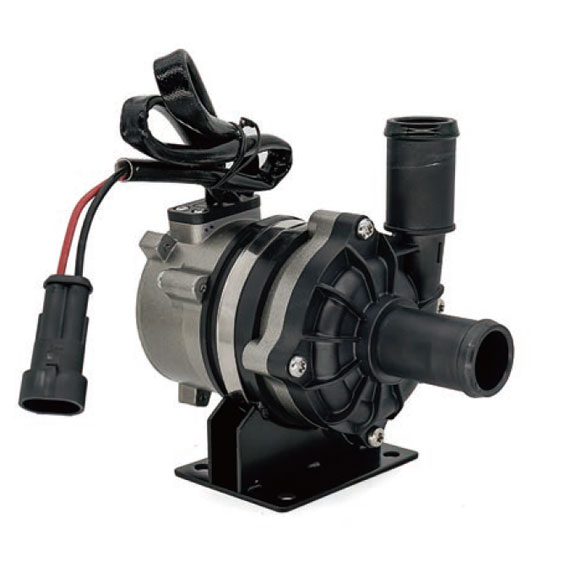

12V Small Electric Water Pump

SWE100 Electric Water Pump

★ ★ ★ ★ ★

Rated voltage: DC 12V/24V

Protection level: IP68

Power range: 80~140W

Working environment: -40°C~105°C

The 12V small electric water pump is mainly used for liquid transportation. It is an efficient and multi-functional device and provides precise control and reliability. Widely used in new energy vehicles and other fields, including new energy vehicle cooling systems, heating systems, lubrication systems, etc.

12V Electric Water Pump Features

▶ Flexible start protection, slow start.

▶ Adopt brushless motor with speed regulation and PWM duty ratio to control different running speed and reduce power output.

▶ Fault feedback protection.

▶ Overvoltage and undervoltage protection；Blocking protection.

▶ Low noise.

SWE100
Rated voltage	DC 12V/24V
Rated current	9.2A
Operating voltage	DC 18~32V
Power range	80~140W
Working environment	-40°C~105°C
Working medium	50% glycol aqueous solution(preferably organic type, particle ≯ 0.35, content ≯ 0.1g/L)
Protection level	IP68
Working noise	≤ 45dB
Working life	≥ 20000h
Weight	0.95kg(Without support)
Protection function	Blocking, reverse, connection, undervoltage, overvoltage, overcurrent, idling, overtemperature
