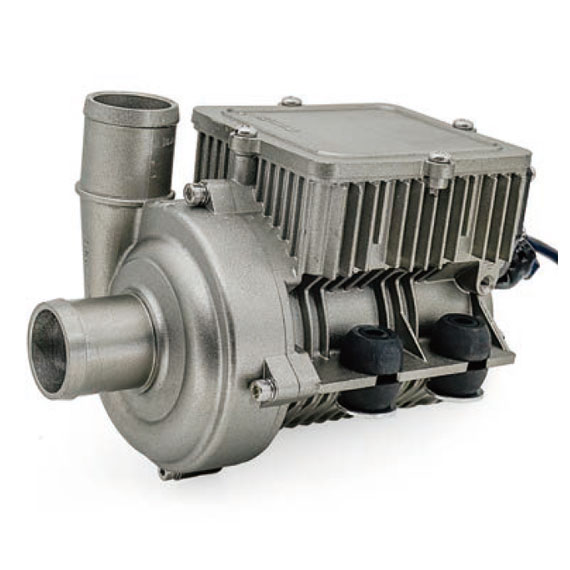

Truck Electric Water Pump

SWE1000 Electric Water Pump

★ ★ ★ ★ ★

Rated voltage: DC 24V

Protection level: IP68

Power range: 500~920W

Working environment: -40°C ~ 85°C

The truck electric water pump is an electronic water pump for trucks and heavy commercial vehicles. It is designed for long-term high-intensity operation and has a high degree of durability and reliability. Truck electronic water pumps play a key role in heavy-duty vehicles and can cope with the high loads and harsh working conditions of heavy-duty trucks and commercial vehicles.

Truck Electric Water Pump Features

▶ Highly integrated shield pump, high reliability, maintenance free, Soft start protection, small start current.

▶ High efficiency: hydraulic + motor + controller.

▶ With anti-reverse connection, over current, over pressure, under pressure, over temperature, blocking protection.

▶ Full range of adjustable speed (support cruise speed customization).

▶ BLDC → PMSM+ non-inductive FOC, lightweight, low noise.

▶ Industry-leading ECU vehicle components and solutions, a variety of communication methods with ECU platform design.

▶ Online upgrade and fault diagnosis, To meet the intelligent needs of car connection: CAN communication, non-inductive temperature measurement.

SWE1000
Rated voltage	DC 24V
Rated current	-
Operating Voltage	DC 18~32V
Power range	500~920W
Working environment	-40°C ~ 85°C
Performance parameters	Q=10800L/H, H=18M, P=920W
Working medium	50% glycol aqueous solution(preferably organic type, particle ≯ 0.35, content ≯ 0.1g/L)
Protection level	IP68
Working noise	≤ 62dB
Working life	≥ 20000h
Weight	4kg
Protection function	Blocking, reverse, connection, undervoltage, overvoltage, overcurrent, idling, overtemperature
