High Voltage Electric Compressor For Car

Superway High Voltage Electric Compressor For Car

IP67 waterproof, dustproof,shockproof

After rigorous test assessnent andreliability assurance

Light weight and small customized design, meeting market demand

The product features are outstanding and deeply recognized by customers

High technology maturity, good quality reputation and sustainable development

Passenger Car
Passenger Car
Passenger Car
Passenger Car

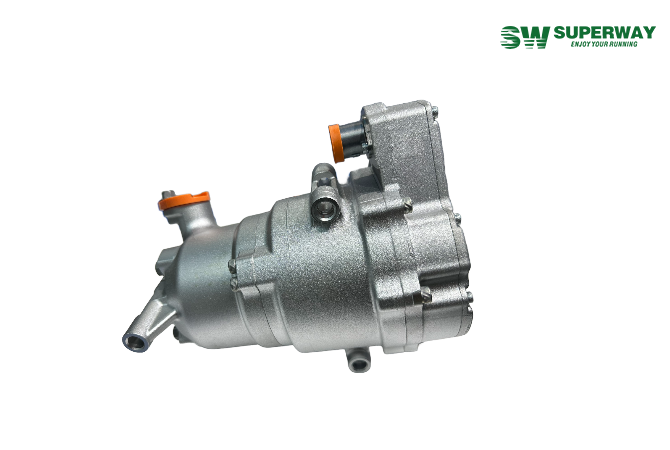

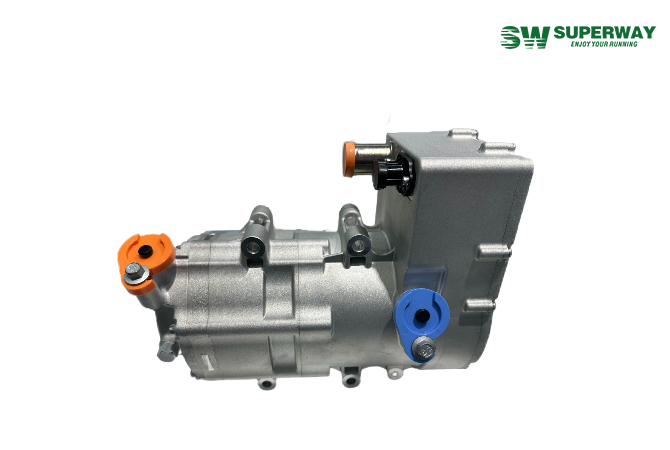

High Voltage Electric AC Compressor

High voltage electric compressors mainly used in the air conditioning system of new energy passenger cars, especially for models with strict requirements for low-temperature operation, such as pure electric vehicles (EV), plug-in hybrid electric vehicles (PHEV), etc. Whether in the severe cold regions of North America or the winter environment of Europe, it can provide users with efficient and stable thermal management solutions.

Electric AC Compressor Features

✅Ultra-low temperature operation: supports stable operation in extremely cold environments of -30℃, effectively improves the efficiency of the heat pump system, and reduces endurance loss.

✅ Low pulsation, low noise: optimizes fluid dynamics design, reduces airflow pulsation and vibration, ensures silent operation, and provides a more comfortable experience for drivers and passengers.

✅ Miniaturization and lightweight design: adopts a highly integrated design, occupies a small space, is light in weight, saves space for the whole vehicle and reduces overall energy consumption.

✅ High efficiency and energy saving: advanced motor and frequency conversion control technology improves the energy efficiency ratio (COP), reduces vehicle energy consumption, and extends the range.

Technical Specification

Model	SWETS34	SWETS34L	SWETH34	SWETH45
Displacement (cc/rev)	34	34	34	45
Voltage range (VDC)	200~490 400~750	140~460	200~490	200~490 400~850
Weight with oil (kg)	5.85	6.5	6.3	8.3
Length （mm）	210	255	221	261
Speed range（Rpm）	800~8000	800~8000	800~9000	600~10000
Cooling Capacity (kw)	0.8kw ~8kw	0.8kw ~8kw	0.8kw ~9kw	1kw ~13kw
Communication Protocol	CAN /LIN	CAN /LIN	CAN /LIN	CAN /LIN
Refrigerant	R134a/R1234yf	R134a/R1234yf	R134a/R1234yf	R134a/R1234yf
Technical Features	●VDAStandardization ●Miniaturization design ●Lightweight Design	●Low pulsation ● Internationalized development standards	● Ultra-low temperature heat pump ● Wide operating range ● Low NVH / Low pulsation	● Large displacement ● High voltage ●Ultra-low temperature ●heat pump ● Wide operating range ● Low NVH / Low pulsation
